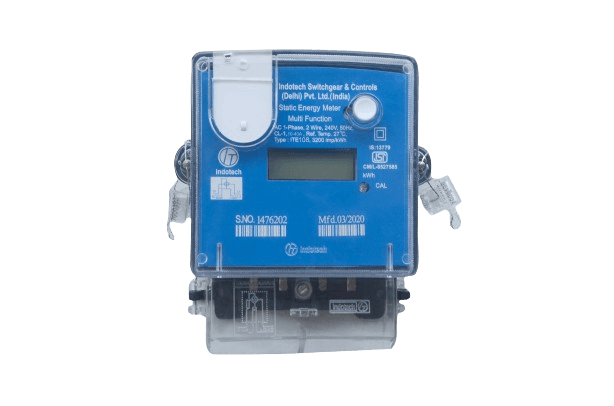

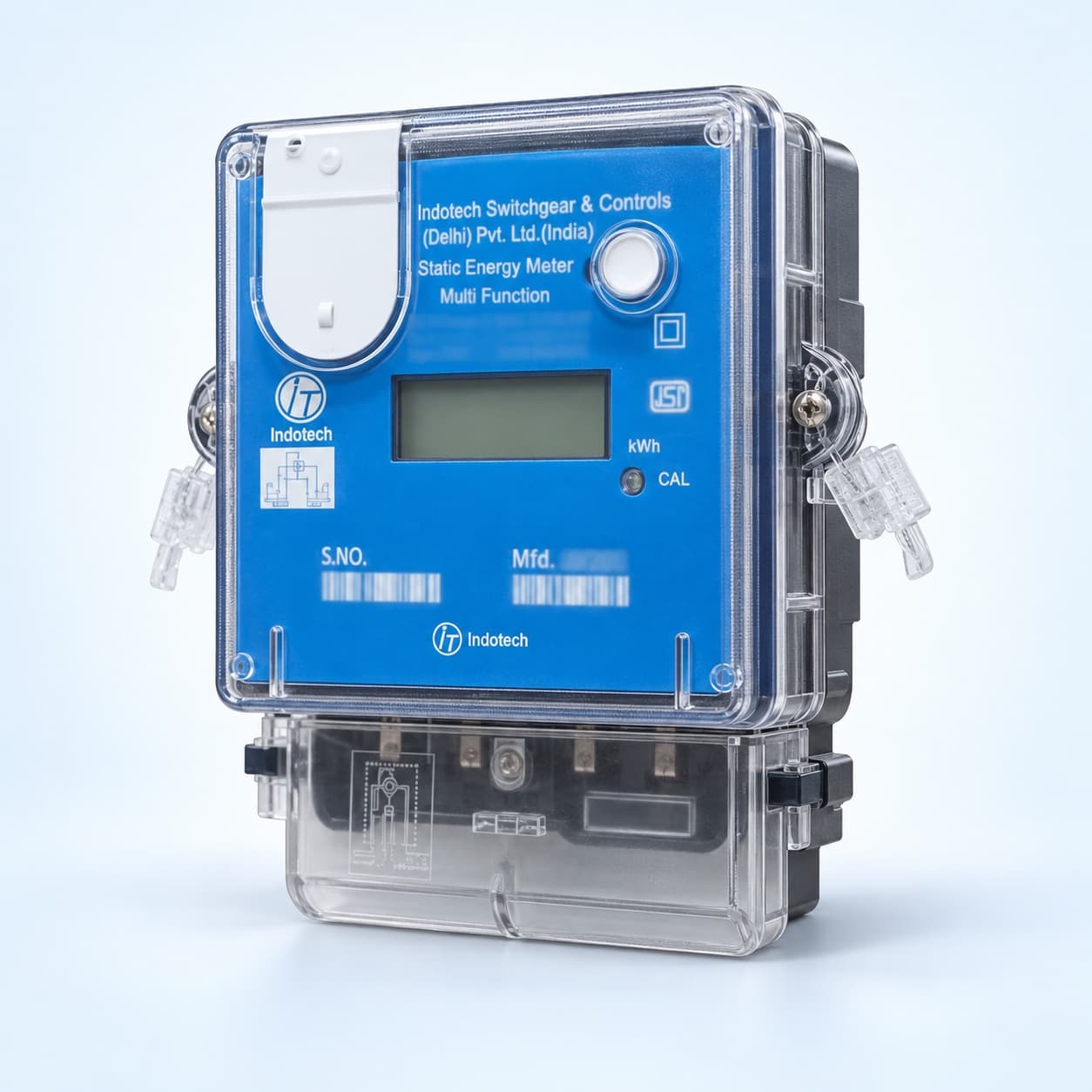

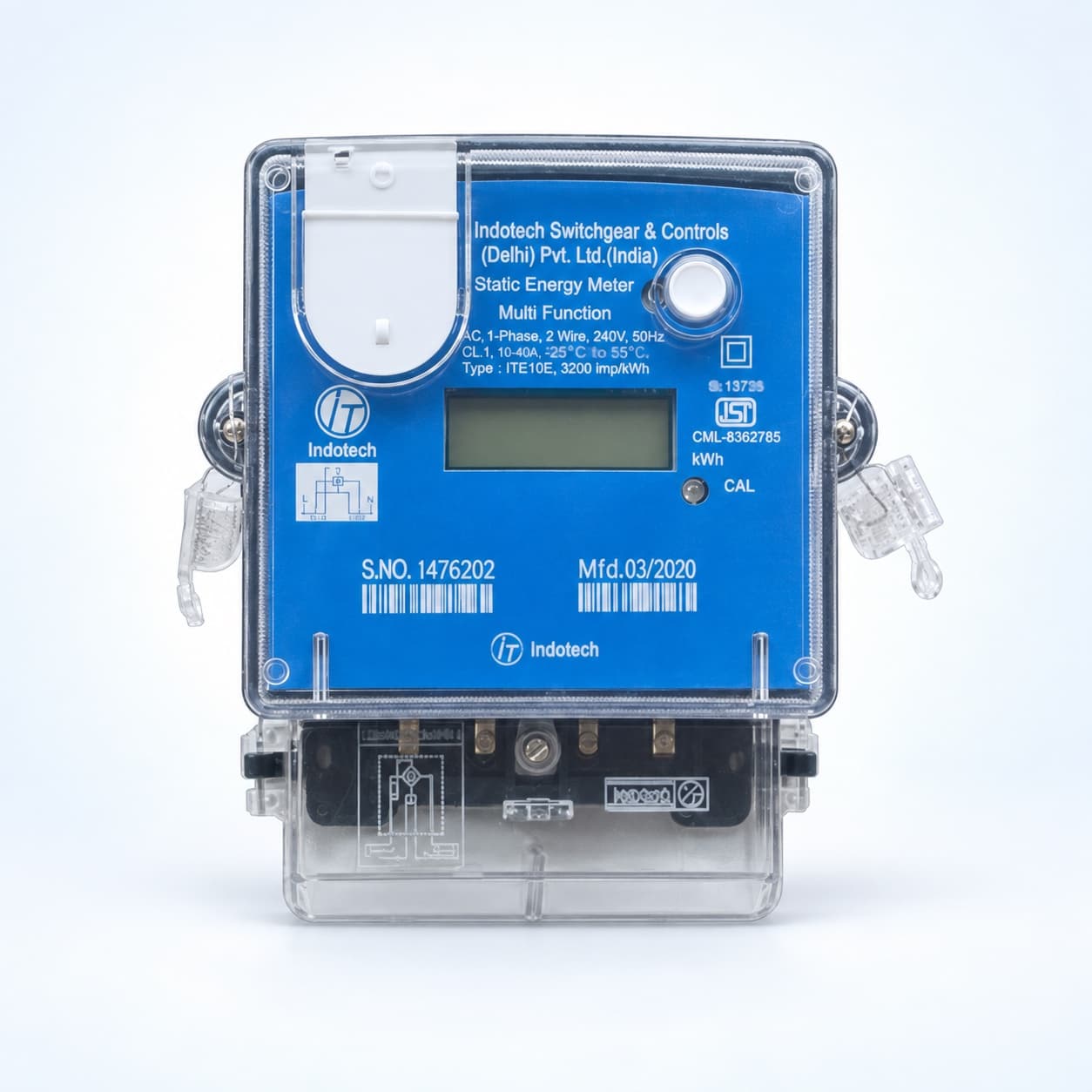

Single Phase Meters
Semi Multi-Function
Single-phase semi multi-function meters provide reliable and accurate energy measurement with additional features for enhanced monitoring. built with advanced technology to ensure durability.
Starting Price
₹2,400
Select Variant:
5-30A
5-30A
₹2,400
10-60A
10-60A
₹2,800
Benefits
Cost-effective energy management
Intuitive display
Weather-resistant design
Quick setup
Features
Multi-tariff metering
Seamless connectivity
Wide voltage range
Power status indicators
Technical Specifications
Comprehensive technical details
General
| Model Name / Number | SPM-3003 |
| Application | Residential, Commercial |
| Standards Compliance | IS 13779:2020, IEC 62052-11 |
Electrical
| Voltage Rating | 240V |
| Current Rating | 5-30A / 10-60A |
| Frequency | 50Hz |
| Power Factor | 0 lag - Unity - 0 Lead |
| Accuracy Class | Class 1 |
| Power Consumption | 0.6W |
Measurement
| Energy Measurement | Active |
| Load Profile | No |
| Tamper Detection | Yes |
| Data Storage Capacity | 1 Year |
| Measurement Interval | Not Applicable |
Mechanical
| Dimensions | 150 x 100 x 50 mm |
| Weight | 500g |
| Mounting Type | Wall Mount |
| Enclosure Material | Polycarbonate |
communication
environmental
| Operating Temperature Range | -10?C to +55?C |
| Storage Temperature Range | -20?C to +70?C |
| Humidity | 95% Non-condensing |
| Ingress Protection (Ip) Rating | IP54 |
display and user interface
| Display Type | LCD |
| Display Parameters | Voltage, Current, Power, Energy |
firmware and software
| Data Security Features | Encryption, Secure Boot |
certifications and approvals
| Certifications | ISO 9001, CE, UL, S Mark |
additional features
| Time-Of-Use (Tou) Tariffs | No |
| Event Logging | No |
| Load Control Relay | No |
| Battery Backup | Yes |
| Anti-Tamper Features | Yes |
