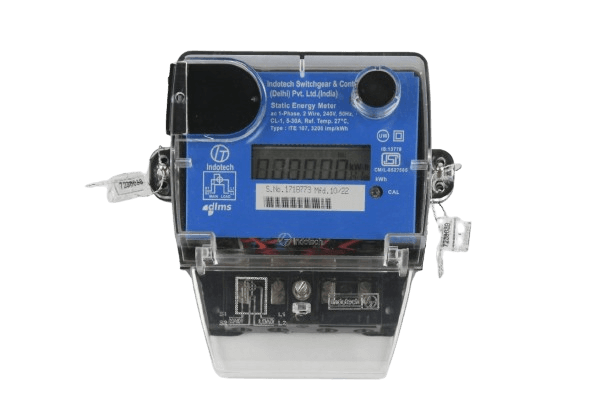

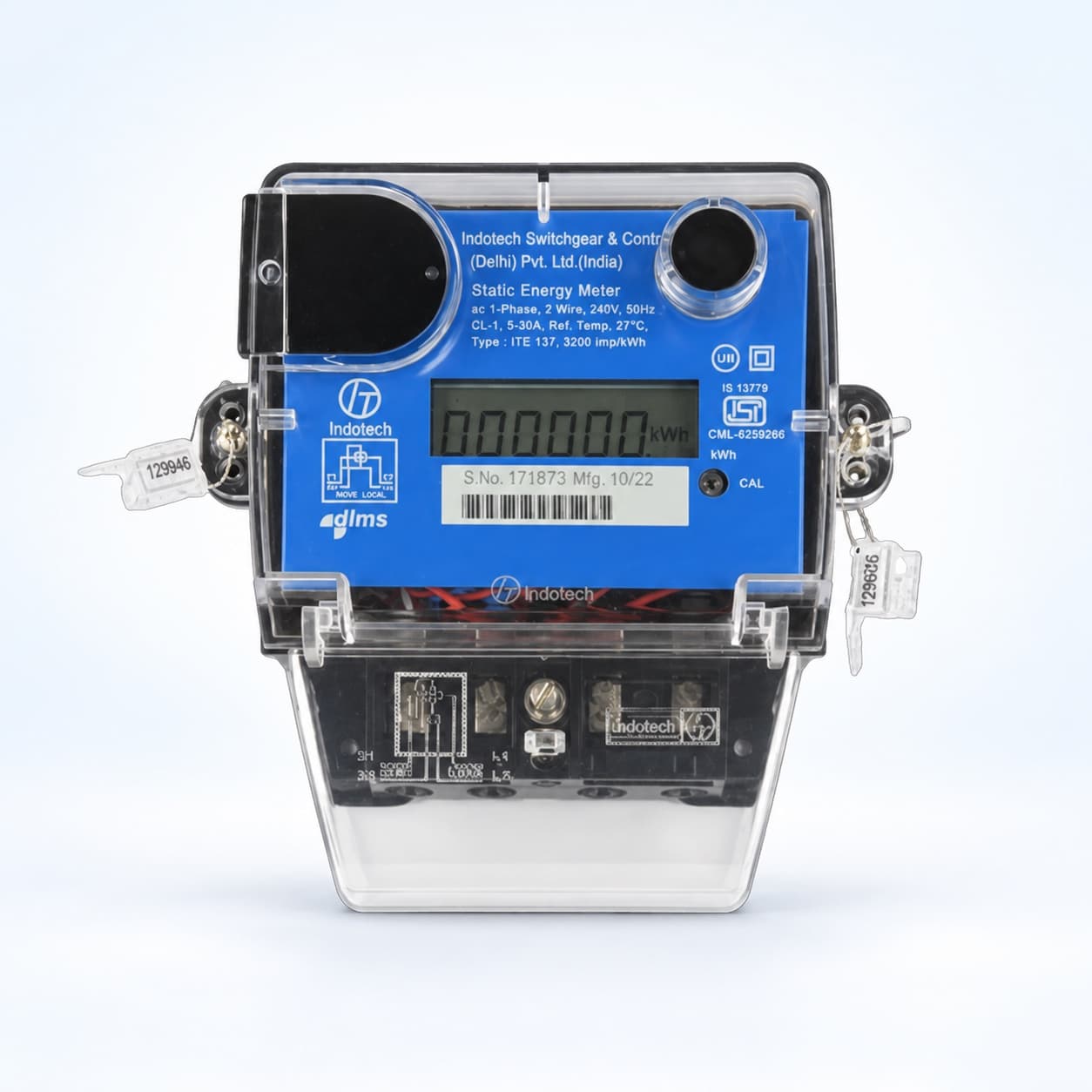

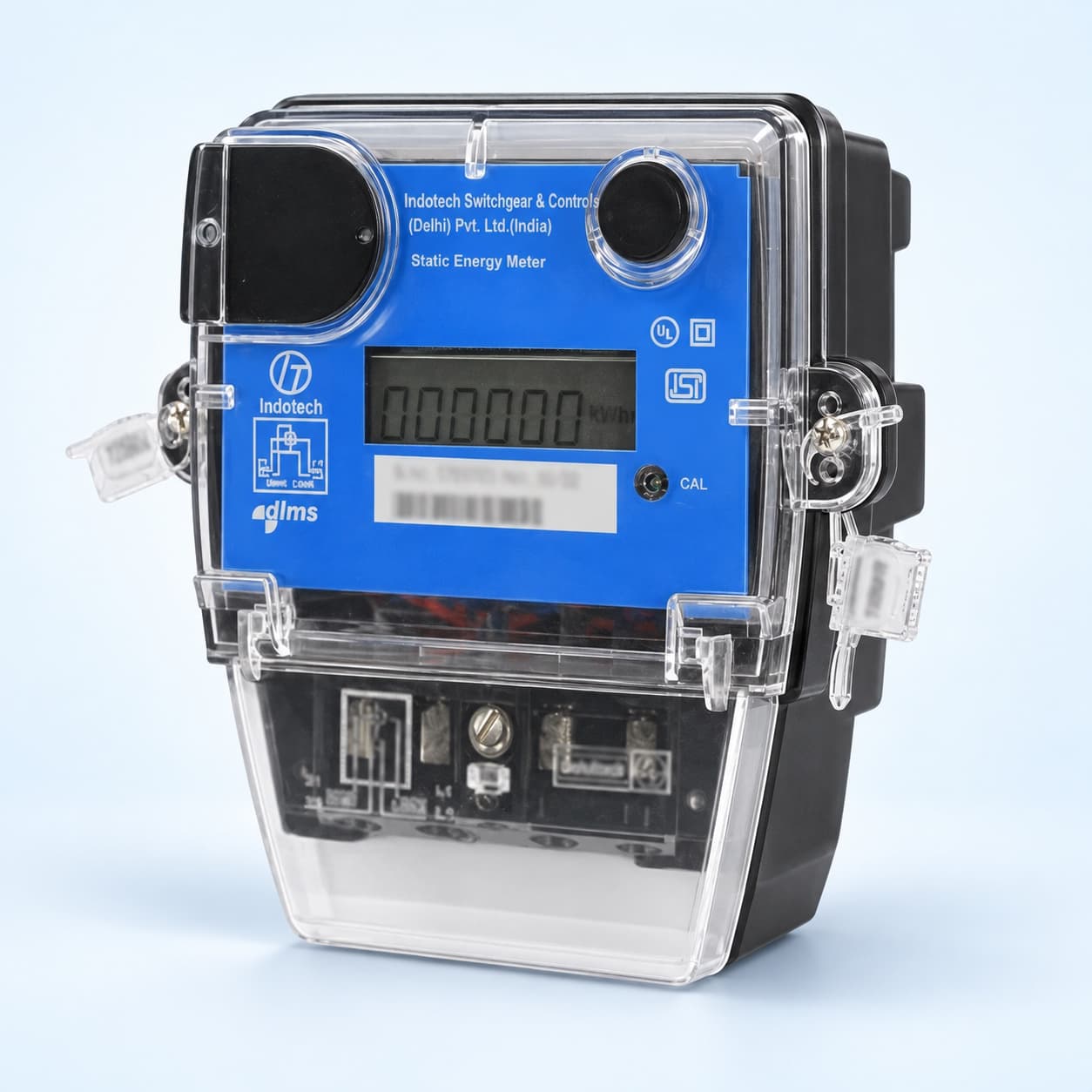

Single Phase Meters
DLMS
Our DLMS single-phase meters ensure standardized and precise energy measurement, complying with international standards. engineered for precision and reliability.
Starting Price
₹3,200
Select Variant:
5-30A
5-30A
₹3,200
10-60A
10-60A
₹3,600
Benefits
Enhanced data accuracy
User-friendly interface
Robust construction
Minimal upkeep required
Features
Smart data logging
User-customizable settings
Broad compatibility
Remote access capability
Technical Specifications
Comprehensive technical details
General
| Model Name / Number | SPD-5005 |
| Application | Residential, Commercial |
| Standards Compliance | IS 13779:2020, IS 15959:2011, IEC 62052-11 |
Electrical
| Voltage Rating | 240V |
| Current Rating | 5-30A / 10-60A |
| Frequency | 50Hz |
| Power Factor | 0 lag - Unity - 0 Lead |
| Accuracy Class | Class 1 |
| Power Consumption | 0.6W |
Measurement
| Energy Measurement | Active, Reactive, Apparent |
| Load Profile | Yes |
| Tamper Detection | Yes |
| Data Storage Capacity | 1 Year |
| Measurement Interval | 30 Minutes |
Mechanical
| Dimensions | 150 x 100 x 50 mm |
| Weight | 500g |
| Mounting Type | Wall Mount |
| Enclosure Material | Polycarbonate |
communication
| Communication Protocols | DLMS/COSEM |
| Communication Interfaces | RS 232, Optical Port |
| Ami / Amr Compatibility | Yes |
| Remote Meter Reading | Na |
environmental
| Operating Temperature Range | -10?C to +55?C |
| Storage Temperature Range | -20?C to +70?C |
| Humidity | 95% Non-condensing |
| Ingress Protection (Ip) Rating | IP54 |
display and user interface
| Display Type | LCD |
| Display Parameters | Voltage, Current, Power, Energy |
| Backlight | Yes |
firmware and software
| Software Compatibility | Utility Software, Mobile App |
| Data Security Features | Encryption, Secure Boot |
certifications and approvals
| Certifications | ISO 9001, CE, UL, S mark |
additional features
| Time-Of-Use (Tou) Tariffs | Yes |
| Event Logging | No |
| Load Control Relay | No |
| Battery Backup | Yes |
| Anti-Tamper Features | Yes |
