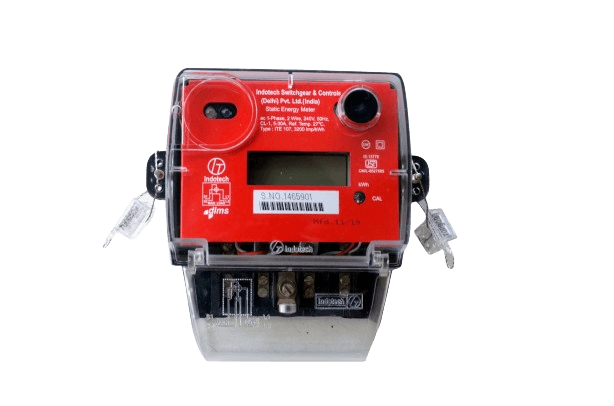

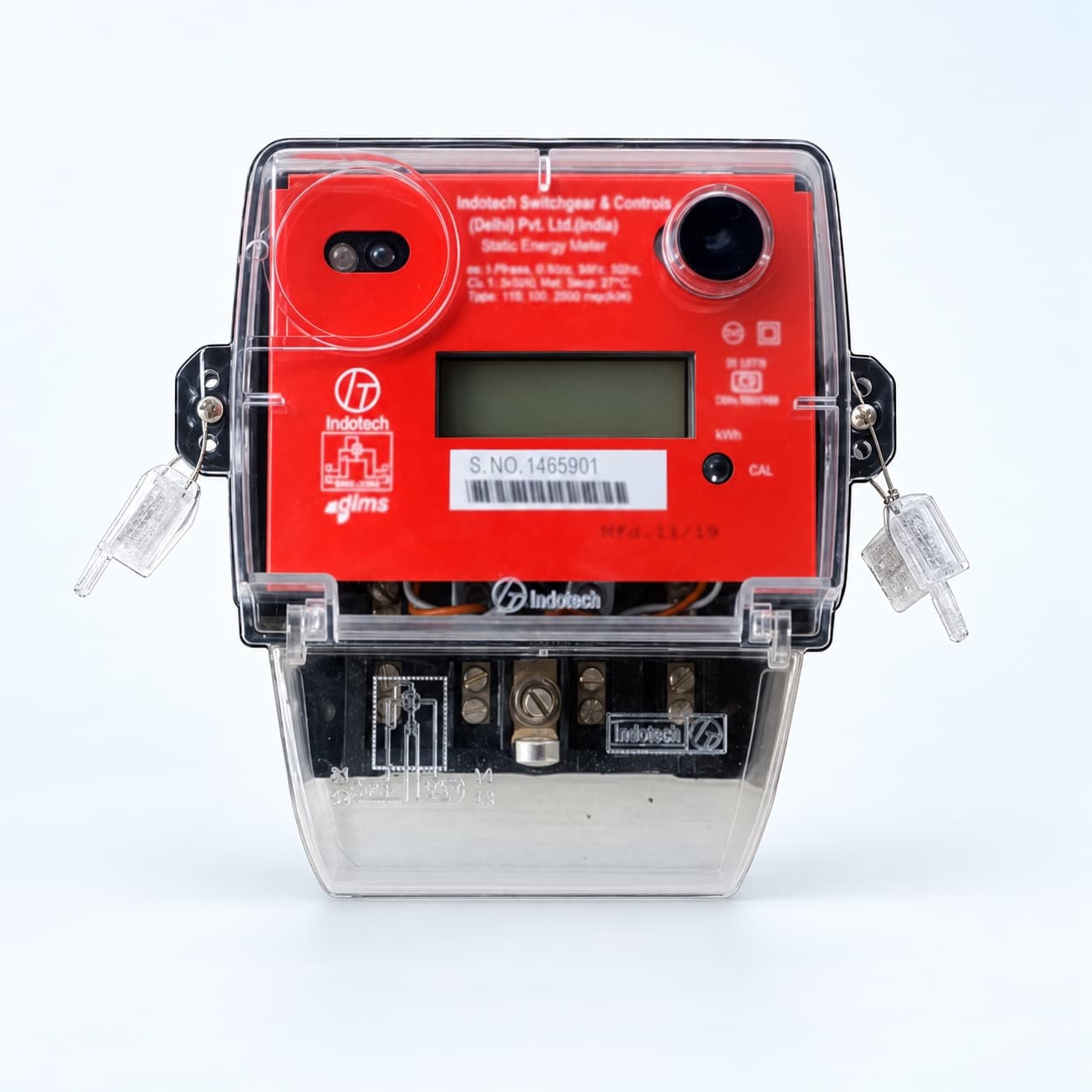

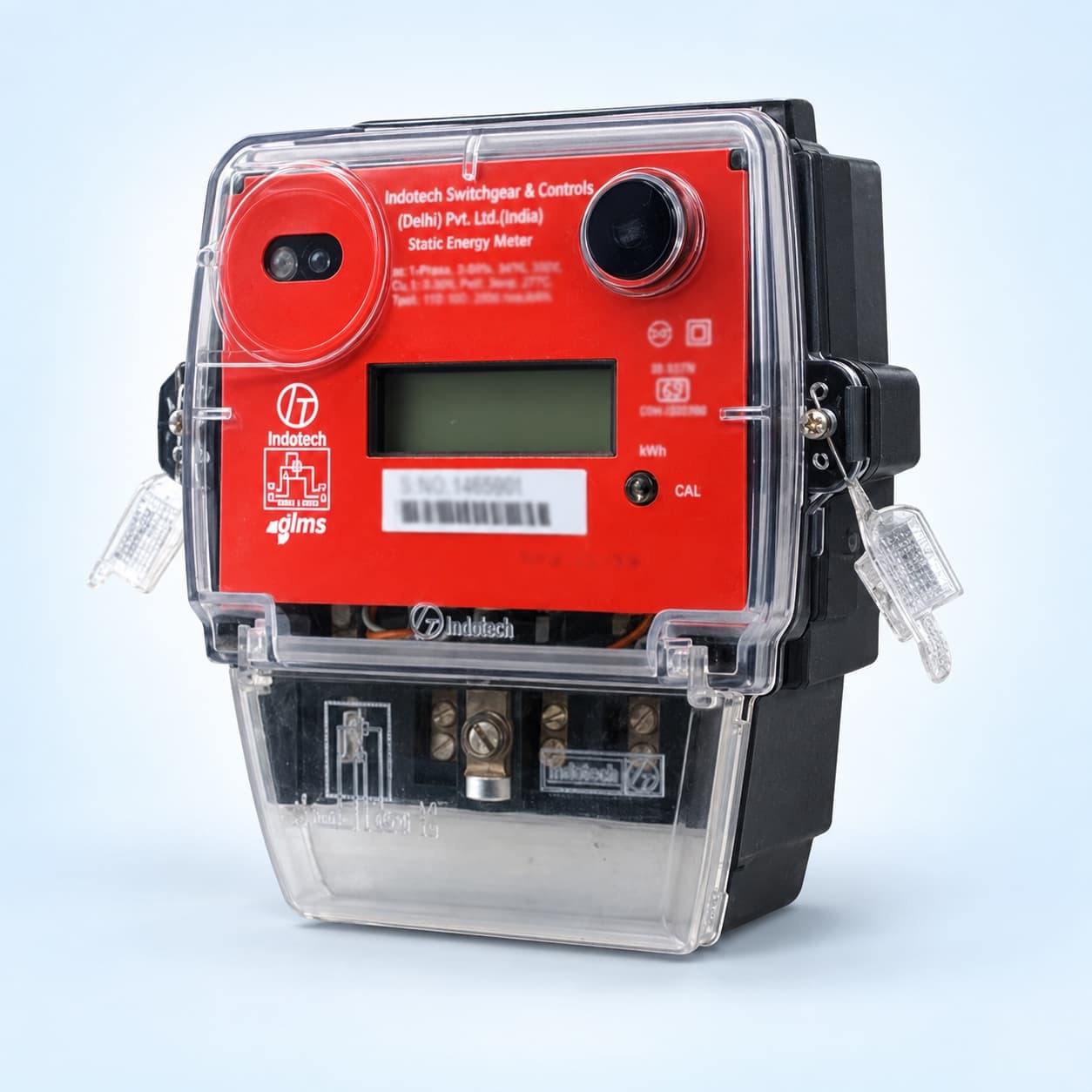

Single Phase Meters
Multi-Function
Multi-function single-phase meters deliver comprehensive energy data, enabling effective management of energy consumption. engineered for precision and reliability.
Starting Price
₹2,800
Select Variant:
5-30A
5-30A
₹2,800
10-60A
10-60A
₹3,200
Benefits
Real-time data monitoring
High durability
Scalable for future needs
Reduced energy wastage
Features
High precision readings
Secure data storage
Wide operational temperature range
Instant fault detection
Technical Specifications
Comprehensive technical details
General
| Model Name / Number | SPM-4004 |
| Application | Residential, Commercial |
| Standards Compliance | IS 13779:2020, IEC 62052-11 |
Electrical
| Voltage Rating | 240V |
| Current Rating | 5-30A / 10-60A |
| Frequency | 50Hz |
| Power Factor | 0 lag - Unity - 0 Lead |
| Accuracy Class | Class 1 |
| Power Consumption | 0.6W |
Measurement
| Energy Measurement | Active, Reactive, Apparent |
| Load Profile | Yes |
| Tamper Detection | Yes |
| Data Storage Capacity | 1 Year |
| Measurement Interval | 30 Minutes |
Mechanical
| Dimensions | 150 x 100 x 50 mm |
| Weight | 500g |
| Mounting Type | Wall Mount |
| Enclosure Material | Polycarbonate |
communication
| Communication Interfaces | Optical Port |
| Ami / Amr Compatibility | Yes |
environmental
| Operating Temperature Range | -10?C to +55?C |
| Storage Temperature Range | -20?C to +70?C |
| Humidity | 95% Non-condensing |
| Ingress Protection (Ip) Rating | IP54 |
display and user interface
| Display Type | LCD |
| Display Parameters | Voltage, Current, Power, Energy |
| Backlight | Yes |
firmware and software
| Software Compatibility | Mobile App |
| Data Security Features | Encryption, Secure Boot |
certifications and approvals
| Certifications | ISO 9001, CE, UL, S Mark |
| Regulatory Approvals | Assam State Electricity Board Guwahati Deptt. Of Power Arunachal Pradesh Ajmer Vidyut Vitran Nigam Limited Ajmer (Rajasthan) Central Electric Supply Co. Bhubaneswar (Orissa) Dakshin Haryana Bijli Vitran Nigam Hisar DGVCL Surat (Gujarat) DVVNL Agra JBVNL Ranchi MVVNL MPMKVVCL Bhopal MPPKVVCL Indore NBPDCL Patna PuVVNL Varanasi Electricity Department Puducherry SBPDCL Patna Tamil Nadu Electricity Board Chennai Uttar Haryana Bijli Vitran Nigam Ltd. Panchkula Uttranchal Power Corporation Ltd. Dehradun UGVCL Mehsana Western Electric Supply Co Burla (Orissa) Larsen & Toubro Limited Chennai Bajaj Electricals Ltd Mumbai East India Udyog Ltd.Ghaziabad NCC Ltd.Hyderabad Brahmaputra River Trading (P) Ltd. Guwahati Lumino Industries Kolkata Laser Power & Infra Pvt. Ltd. Kolkata Tata Projects Ltd. Noida Technofab Engineering Ltd Faridabad Sri Gopikrishna Infrastructure Ltd. Hyderabad RECPDCL New Delhi |
additional features
| Time-Of-Use (Tou) Tariffs | Yes |
| Event Logging | Yes |
| Load Control Relay | No |
| Battery Backup | Yes |
| Anti-Tamper Features | Yes |
