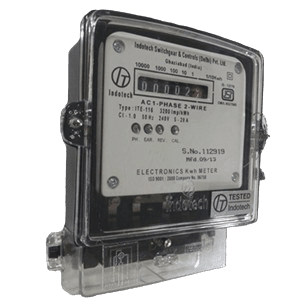

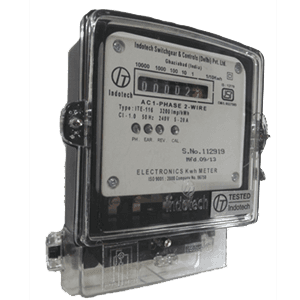

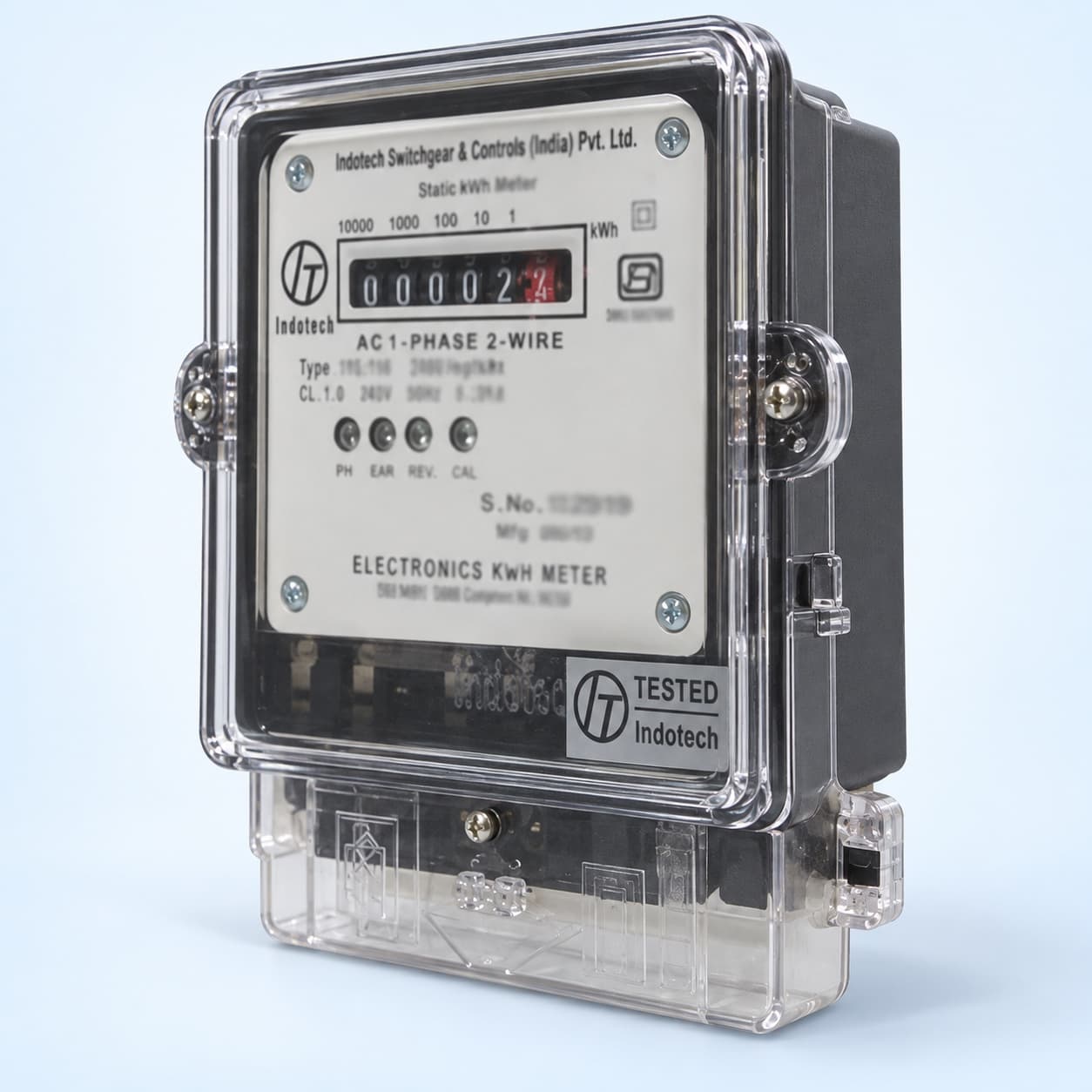

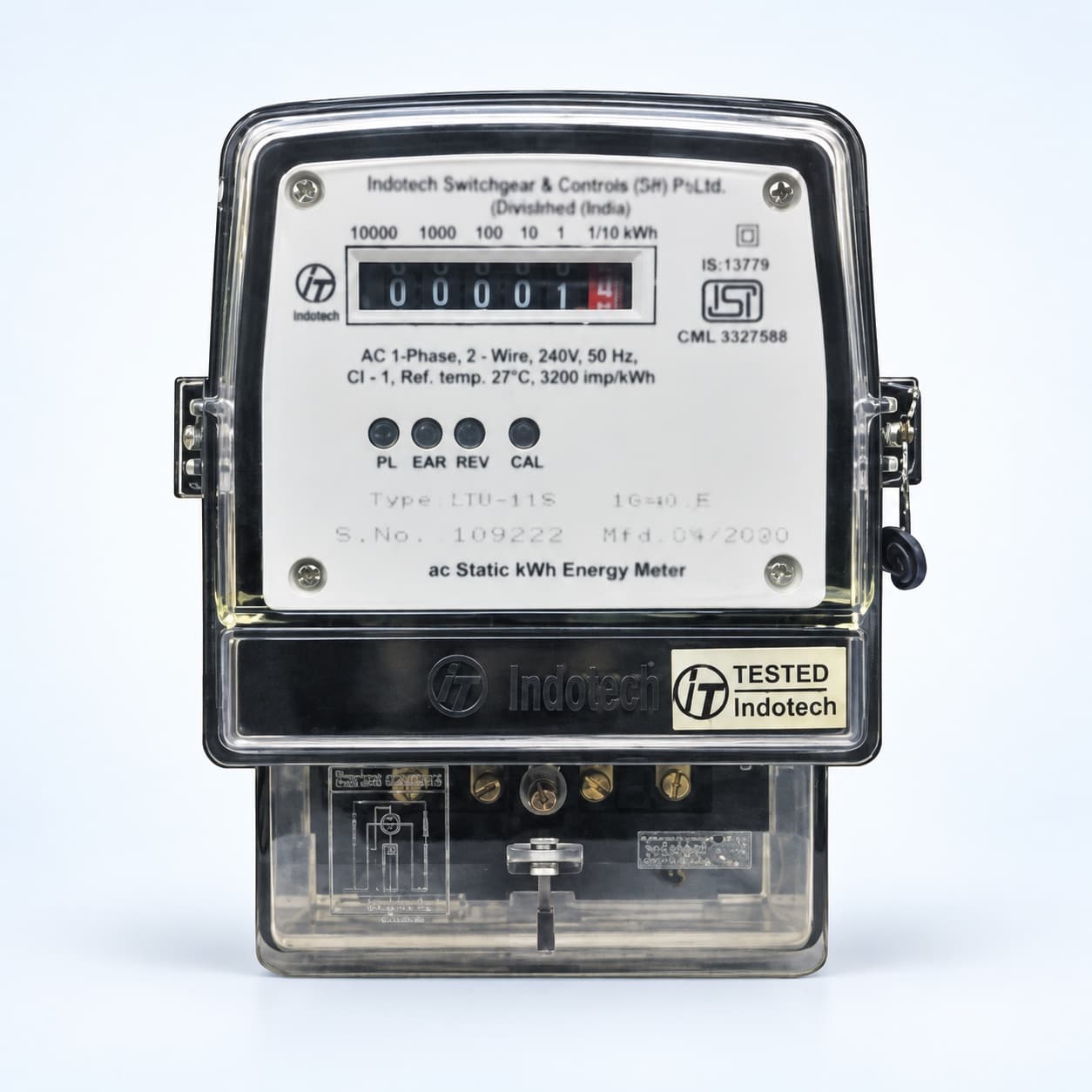

Single Phase Meters
Counter
Our single-phase counters deliver dependable energy measurement, ideal for residential and small commercial applications. built with advanced technology to ensure durability.
Starting Price
₹1,200
Select Variant:
5-20A
5-20A
₹1,200
5-30A
5-30A
₹1,350
10-60A
10-60A
₹1,500
Benefits
Enhanced data accuracy
User-friendly interface
Robust construction
Minimal upkeep required
Features
Easy meter reading
Enhanced security
Compact form factor
Cost effective
Technical Specifications
Comprehensive technical details
General
| Model Name / Number | SPC-1001 |
| Application | Residential |
| Standards Compliance | IS 13779:2020, IEC 62052-11 |
Electrical
| Voltage Rating | 240V |
| Current Rating | 5-20A / 5-30A / 10-40A / 10-60A |
| Frequency | 50Hz |
| Power Factor | 0 lag - Unity - 0 Lead |
| Accuracy Class | Class 1 |
| Power Consumption | 0.6W |
Measurement
| Energy Measurement | Active |
| Load Profile | No |
| Tamper Detection | Yes |
| Data Storage Capacity | 1 Year |
| Measurement Interval | Not Applicable |
Mechanical
| Dimensions | 150 x 100 x 50 mm |
| Weight | 500g |
| Mounting Type | Wall Mount |
| Enclosure Material | Polycarbonate |
communication
environmental
| Operating Temperature Range | -10?C to +55?C |
| Storage Temperature Range | -20?C to +70?C |
| Humidity | 95% Non-condensing |
| Ingress Protection (Ip) Rating | IP54 |
display and user interface
| Display Type | Mechanical Counter |
| Display Parameters | Voltage, Current, Power, Energy |
firmware and software
certifications and approvals
| Certifications | ISO 9001, CE, UL |
additional features
| Time-Of-Use (Tou) Tariffs | No |
| Event Logging | No |
| Load Control Relay | No |
| Battery Backup | No |
| Anti-Tamper Features | No |
