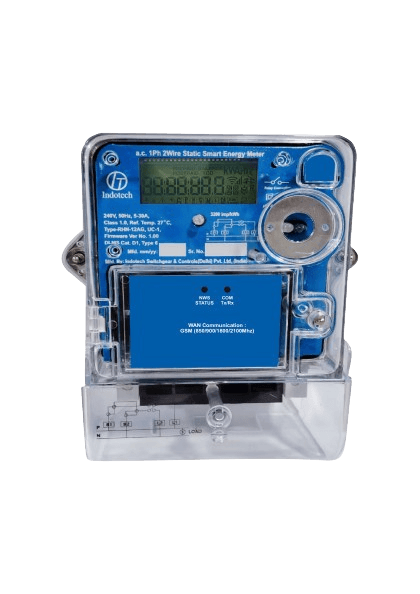

Smart Meters
Smart Meter
Smart energy meters provide advanced energy management and monitoring, offering real-time data and analytics to optimize energy usage. offering unmatched accuracy and efficiency.
Starting Price
₹6,500
Select Variant:
5-30A
5-30A
₹6,500
10-60A
10-60A
₹7,200
Benefits
Enhanced data accuracy
User-friendly interface
Robust construction
Minimal upkeep required
Features
Integrated load management
Anti-tampering features
Flexible installation
Real-time alerts
Technical Specifications
Comprehensive technical details
General
| Model Name / Number | SPSE-6006 |
| Application | Residential, Commercial |
| Standards Compliance | IS16444 P1 2015, IS 15959:2011 |
Electrical
| Voltage Rating | 240V |
| Current Rating | 10-40A / 10-60A |
| Frequency | 50Hz |
| Power Factor | 0 lag - Unity - 0 Lead |
| Accuracy Class | Class 1 |
| Power Consumption | 1.5W |
Measurement
| Energy Measurement | Active, Reactive, Apparent |
| Load Profile | Yes |
| Tamper Detection | Yes |
| Data Storage Capacity | 1 Year |
| Measurement Interval | 30 Minutes |
Mechanical
| Dimensions | 150 x 100 x 50 mm |
| Weight | 500g |
| Mounting Type | Wall Mount |
| Enclosure Material | Polycarbonate |
communication
| Communication Protocols | DLMS/COSEM |
| Communication Interfaces | RS232, GSM/RF/Optical |
| Ami / Amr Compatibility | Yes |
| Remote Meter Reading | Yes |
environmental
| Operating Temperature Range | -10?C to +55?C |
| Storage Temperature Range | -20?C to +70?C |
| Humidity | 95% Non-condensing |
| Ingress Protection (Ip) Rating | IP54 |
display and user interface
| Display Type | LCD |
| Display Parameters | Voltage, Current, Power, Energy |
| Backlight | Yes |
firmware and software
| Firmware Update Method | Over-the-Air (OTA) |
| Software Compatibility | Utility Software, Mobile App |
| Data Security Features | Encryption, Secure Boot |
certifications and approvals
| Certifications | ISO 9001, CE, UL |
additional features
| Time-Of-Use (Tou) Tariffs | Yes |
| Event Logging | Yes |
| Load Control Relay | Yes |
| Battery Backup | Yes |
| Anti-Tamper Features | Yes |
